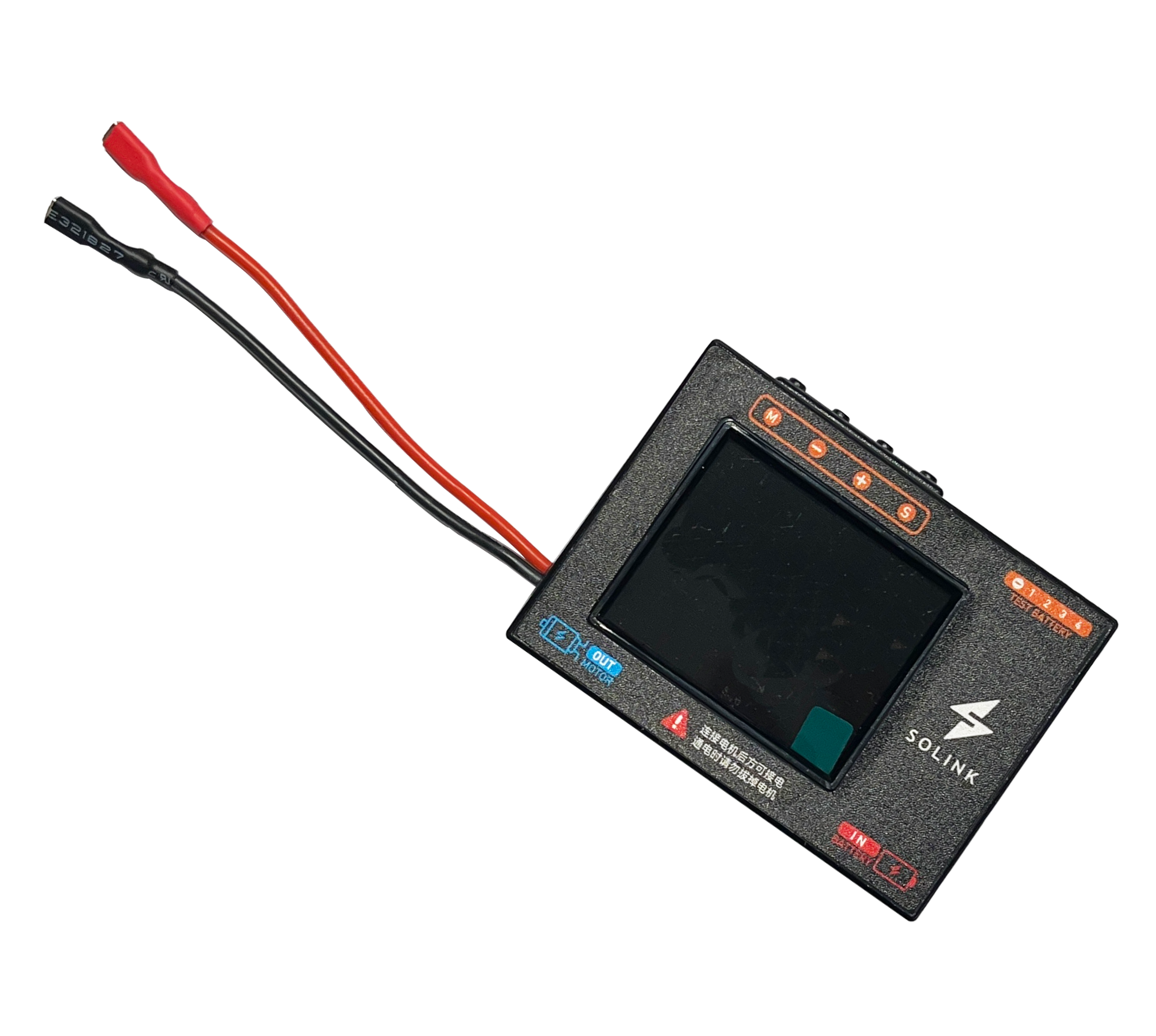

• Motor speed can be adjusted between 10k-46k rpm with 1k rpm increments with this digital programming card (Default value: 46k rpm ,11.1v)Please Note: Digital programming board only work with v5 motor, not workable for our other models either other brands motor.
• The starting torque of the motor can be adjusted by current change. (Default value:60%)
• It can also be used to check the health of the battery, and automatically detects the battery voltage and percentage of remaining charge after the battery is linked
Button Description:
• M Button: Short press to select the item to be set, long press to quickly reconnect when disconnected from the motor.
• – Button: Short press to decrease the value of the selected item, long press to quickly decrease the value of the selected item.
• + Button: Short press to increase the value of the selected item, long press to quickly increase the value of the selected item.
• S Button: Long press to save the settings to the motor.
Attention:
1) Some malfunctions, poor contact, or unexpected situations may cause the motor to rotate unexpectedly. Therefore, the motor must be securely fixed before using this product.
2) The motor must be reliably connected to the cable of the board before the board can be powered on, otherwise it may cause accidental rotation of the motor.
3) The battery voltage used to power the programming board must be higher than 7.4V, otherwise it may cause the motor to rotate unexpectedly.
4) After the settings are saved, the programming board will self-disconnect and disconnect from the motor. If you want to reset it, you must power it on again or press and hold the M button to reconnect.
5) While in the setting menu, do not disconnect the motor wires, otherwise it may cause the motor to rotate unexpectedly.
6) If the maximum current rating of the ETU is lower than the defined starting current of the motor,we are NOT responsible for the damage it might caused.
7) Please confirm the correct polarity before installation. Do not reverse the positive and negative connections. Damage caused by incorrect polarity is not covered under warranty.
