APS TE Ghost Gel Blaster with Edge 2 Gear Box

Sale price$419.00 Regular price$599.00
Quantity:



Description

APS Phantom Extremis MKI SDU Gel Blaster- Black

Say hello to the Phantom Extremis MK1 Gel Blaster with SDU.

The MK1 build is based on popular American carbine styles and equipped with the ever popular modular M-Lok handguard.

A long, top RIS 22 mm rail allows for the attachment of various optical sights.

The set includes a kit of flip-up iron sights.

The MK1 is ambidextrous which is great for right and left hand play. Furthermore, the MK1 features a proprietary APS Phantom Overload pistol grip with exchangeable, anti-slip EVA panels that also features a system of absorbing the shock generated by the motor, thus improving its efficiency.

The receiver and handguard design provides the MK1 with a modern and aggressive appearance. The handguard was made in M-Lok system, which allows for the customization of the positioning of rails according to User preferences. The gel blaster also features a custom, enlarged charging handle.

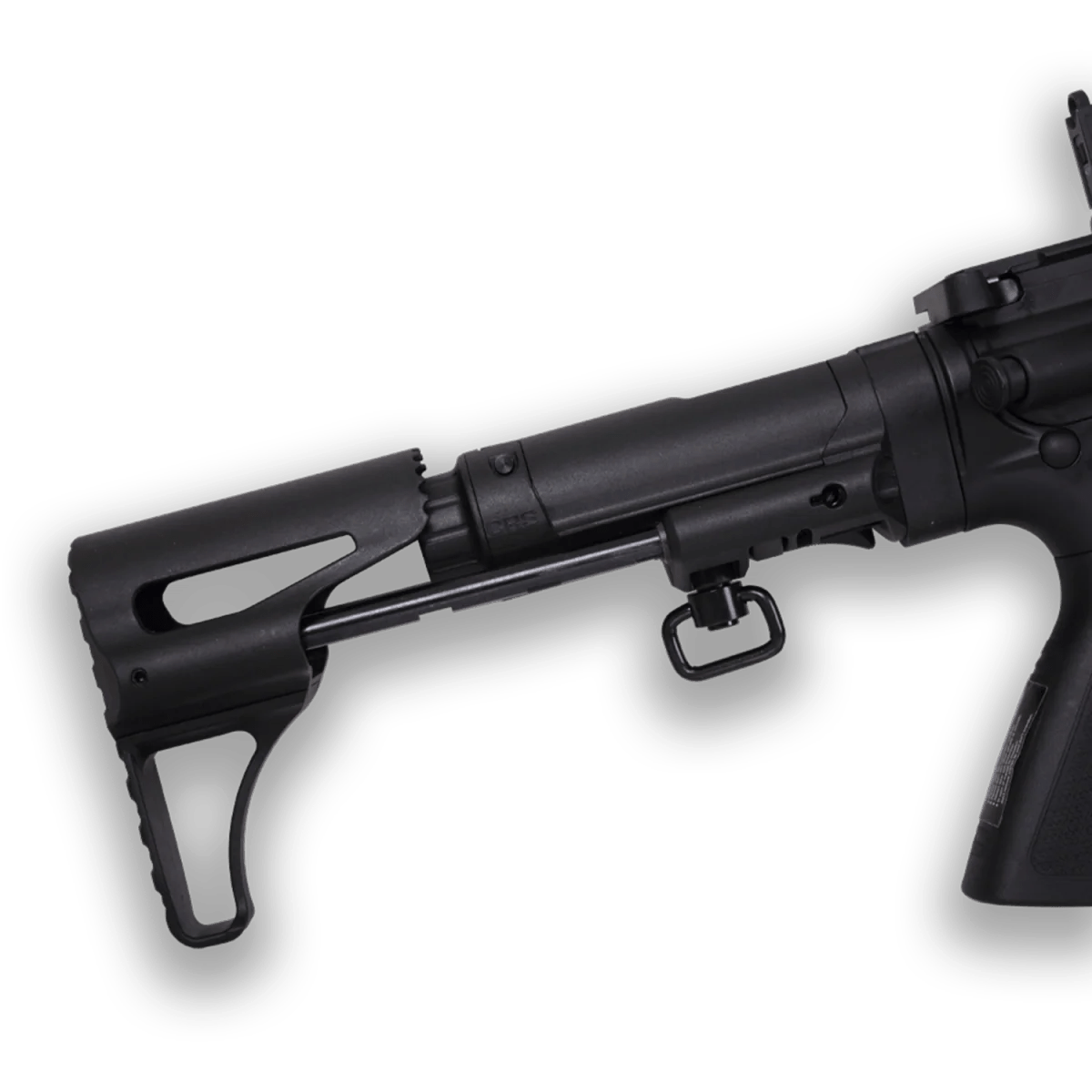

The MK1 has a fixed stock with a room for a battery. The access to the storage compartment is gained after the removal of the stock pad.

The heart of the Phantom MK1 consists of a eSilveredge SDU Gearbox. A unique technology has been used during the production process of this gearbox in order to assure the most accurate polish and finish of its elements.  The gel blaster is equipped with a Quick Spring Change System that allows the User to change the spring without having to open up the gearbox. The MK1 is hitting around 280+ FPS of Hardened Gel Balls.

The Phantom Extremis MK1 has many amazing features and simply looks stunning!

Features

eSilver Edge Gearbox

Quick Change Spring System
The Quick Change Spring Guide has 4 locking legs instead of 2.
Polished and Buffed housing surface.
8mm Bearing Bushings, Bearing Piston Head and Bearing Spring Guide.
Mosfet Installed

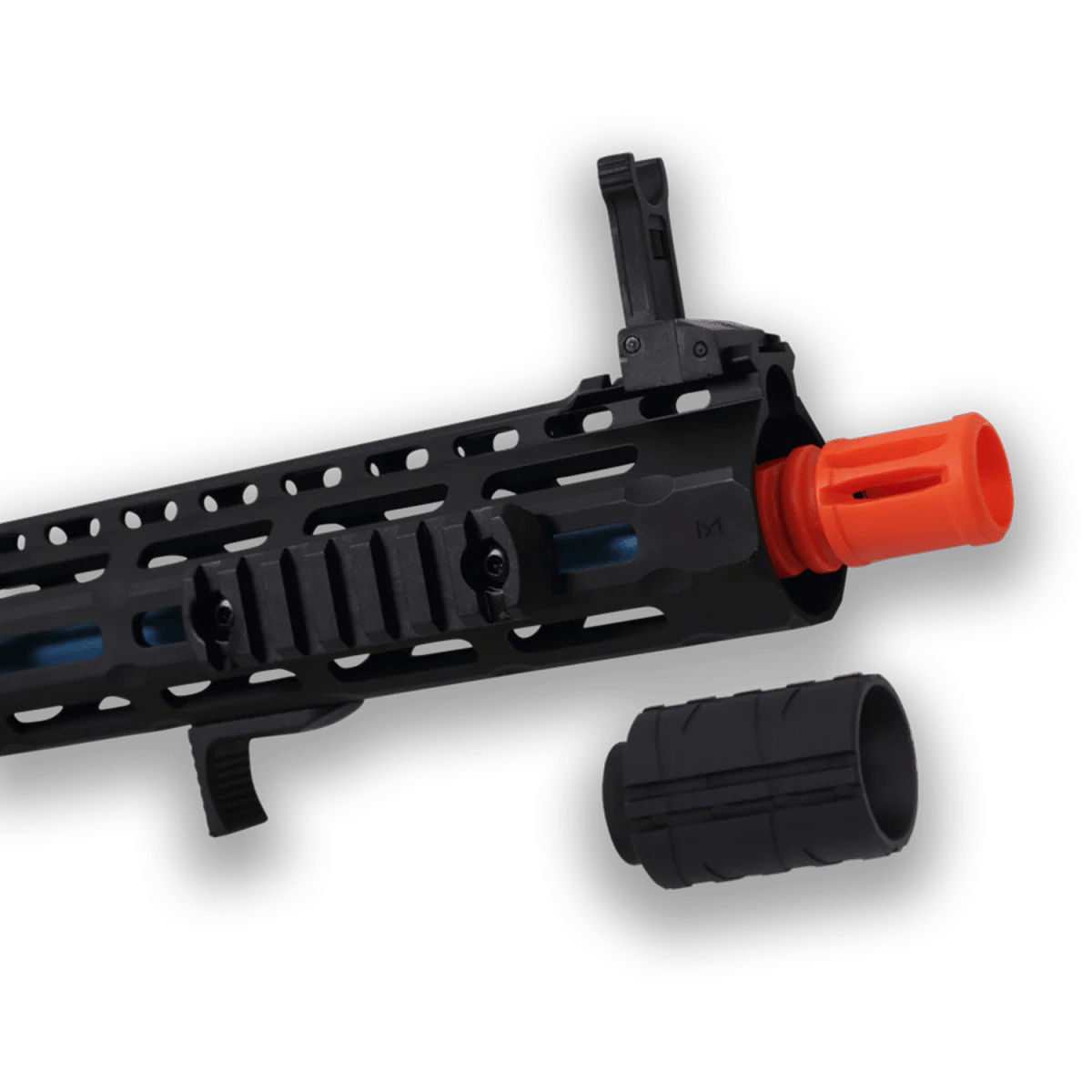

  • New Stylish Flash Hider (ICEFYRE Muzzle Break)
  • Slim and light weight KeyMod Hand Guard with Hand Stop implicit in the design, which gives your support hand a low profile anchor point in the forend. - (Phantom Dash 10 ")
  • New Phantom Low Profile Back Up Sight LP BUS
  • The new pistol grip (phantom overload) that pre-installed with non-slip EVA plastic at the front and rear increases the comfort of holding it.
  • New version of Magazine Ambi Catch on both sides (Phantom Ambi Mags Release)
  • New Ambi trigger selector on both sides (Phantom Long / Short Throw safety selector)
  • New Ambi loading handle (Combat Ambi phantom load identifier)
  • Flat Trigger (Enhance Control and lighter perceived weight)
  • RS-1 stock installed (R Series 1 stock)

**Orange tip shown for illustration purposes**

Specs

  • Gel Type: 7-8mm
  • Inner barrel size: 7.5mm
  • Barrel Type: Polished Stainless Steel
  • Battery Source: 7.4 Li Po Battery with Mini Tamiya
  • Alloy Silver Edge Gear Box Installed
  • 8mm Metal Bushings
  • M100 Spring
  • 480 Long Shaft Motor
  • Velocity: 280+FPS
  • Fire Selector: Safe / Semi Auto / Full Auto
  • Metal Hand Guard and ABS Gen 8 Magazine
  • Metal Gear Box, Receiver, Sliding Stock, Handguard, Outer Barrel.
  • Pistol Grip is made of a reinforced polymer.
  • Magazine Capacity: 250 Gels
  • Suitable Hopup: DK-Gen 10 Reverse Thread Hopup
  • Recommended Gels - Ultra Hard

** Battery, Charger & Gels not included

ESILVEREDGE GEARBOX SDU INSTRUCTIONS/SPEC

SDU2.0 is a programmable ECU chips that is being used in eSilver Edge Gear Box

Simply pressing down the button underneath the gear box, user can switch its fire selector modes (total 5 different modes). No external device or trigger control are needed, it is easy to program anytime and anywhere by the user.

First, connect your AEG with a fully charged battery (7.4V) Battery. The usual battery that you used when you play.

Second, find the switch button. The button is located underneath the gear box reachable from the magwell of the lower receiver.

How to change the mode?

Step 1) Press and hold the button. You will see a Red LED light on, hold till you see its blinking 2 times, release the button to accept the changes. Repeat Step 1 to continue your choice.

Choice of Firing Mode:

Mode 1 (Default)

Safe

Semi

Auto

Mode 2

Safe

Semi

Three Burst

Mode 3

Safe

Two Burst

Auto

Mode 4

Safe

Three Burst

Auto

Mode 5

Safe

Three Burst

Nine Burst


**Double click the button or unplug the battery anytime to reset the ECU back to its factory settings (Mode 1) **

Use of Advanced S.D.U.™ chips

The S.D.U.™ chipset that is used in the eSilver Edge Gear Box has a unique function that stops the gearbox from further damage if the electric current is too high. Simply to say, electric current / Ampere will increase if there is a malfunction inside the gearbox. For instant, bad motor, damaged gears or short circuit. When our S.D.U. detects more than 5 trigger presses in exceed Amps, the whole gearbox will shut down to prevent further damage. User has to disconnect and then reconnect the power supply to reboot the gearbox, we strongly recommended the user to check the internals immediately if mal-function happens.

Micro Switch Trigger

The eSilver Edge Gear Box standard comes with a micro switch trigger which works together with the S.D.U.™,  providing you an instant trigger response when shooting. Base on our testing, the response time of the switch is just 0.02 sec and designed for two hundred thousand presses. With the short stroke design of the trigger, it is unbelievably fast and you won’t feel any trigger delay when shooting.

    In the Box

    • 1 x Phantom Extremis MKI - Black Gel Blaster
    • 1 x Gen 8 Magazine - Black
    • 1 x Plastic 14mm Left Handed Thread Orange Flash Hider
    • 1 x Alloy 14mm Left Handed Thread Flash Hider - Black
    • 1 x Safety Glasses

    ** Battery, Gels & Charger not included
