Precisely Shimming an AEG Gel-Blaster Gearbox: How Perfect Mesh, Quality Gears, and AOE Setup Deliver Longevity

Getting an AEG gearbox silky-quiet and bombproof isn’t luck — it’s geometry. Correct shimming establishes stable gear centers, proper tooth contact, and minimal parasitic drag. Pair that with hardened gears, a quality pinion, and a modern brushless motor, and you dramatically increase reliability, efficiency, and service life. This article gives you a rigorous, step-by-step approach, plus specific part choices that make the job easier.

Why shimming matters (and what “perfect” looks like)

Goal: each gear sits as low as possible without scraping the shell, with axial play ~0.05–0.10 mm (a human-hair’s worth) and tooth mesh centered across the face. When you get this right:

• Load is shared across the whole tooth, not the tip — preventing pitting and chips.

• Noise drops (less whine) because the mesh isn’t binding.

• Efficiency rises — more battery to BB/gel acceleration, less to heat.

• Longevity improves — bearings, bushings, and teeth won’t saw each other to death.

Parts that make shimming easier and more durable

• Hardened steel gearsets (e.g., SHS) — CNC steel, heat-treated/hardened, widely used for V2/V3 builds; they’re robust and dimensionally consistent, which helps repeatable shim results.

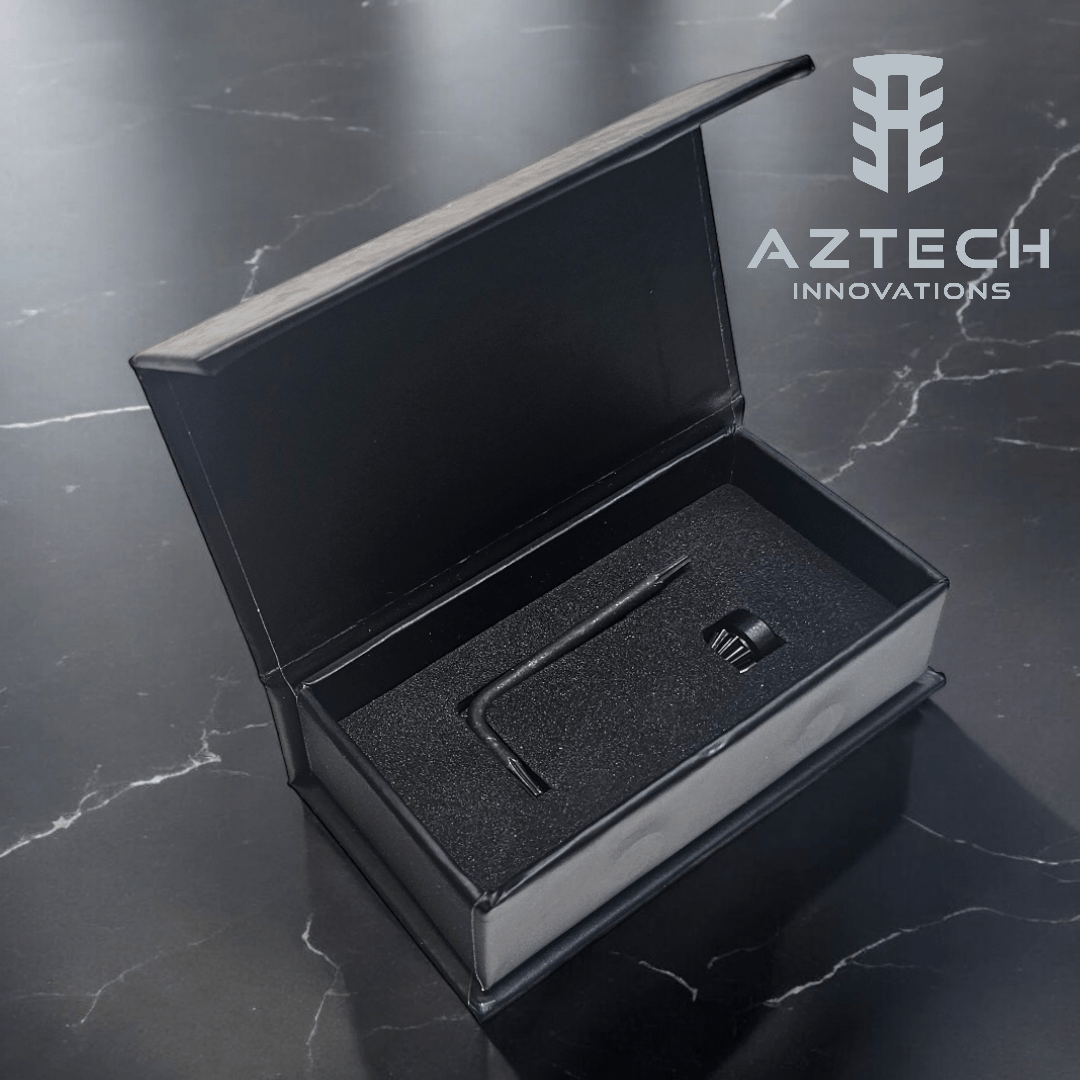

• Aztech Innovations Perfect Pinion — SCM440 steel, quenched/tempered then nitrided, with a larger M3 Torx grub screw for stronger clamping and a bevel on the hub that helps set motor height: raise the motor until the bevel kisses the bevel gear (not running), then back off ~one turn to land the mesh. Azraels Armoury

• Brushless long-axis motor (e.g., SOLINK LT 35 kRPM, 11.1 V) — higher electrical efficiency, flat torque curve, lower heat, and refined startup vs brushed cans. Ideal when you’ve minimized mechanical losses through shimming. Azraels Armoury

• AOE-tunable piston & head (Aztech) — the Aztech Xtreme nylon piston & CNC head accepts 1–3 mm AOE shims so you can set true Angle of Engagement while keeping reciprocating mass low. (Light heads reduce impact energy without sacrificing timing.) Azraels Armoury

Tools & prep

• Shim set (0.1/0.15/0.2 mm common), feeler gauges or paper shims, fine marker, calipers (optional), light grease, thread-locker for pinion/grub, and your gearbox empty (no spring) for feel checks. De-burr shell posts if needed; confirm bushings/bearings are fully seated.

The shimming sequence (the proven order)

1. Spur gear first (the reference plane).

   • Install the spur with bottom shims only until it just clears the shell floor (spin it — no rub).

   • Add top shims to achieve ~0.05–0.10 mm axial play. Close the shell and check again.

2. Bevel gear next (for ARL and pinion mesh).

   • Shim the bevel to the spur, not the shell. You want the teeth centered and smooth through a full rotation.

   • Install the anti-reversal latch and verify no binding.

   • Motor height: with the Aztech Perfect Pinion, raise motor until the beveled hub touches the bevel gear, then back off ~one turn. This lands you in the correct mesh window quickly. Do a marker test (blacken pinion/bevel teeth, short blips under no spring) and look for even wipe across the tooth face — adjust in quarter-turns. Azraels Armoury

3. Sector gear last (timing & tappet ride).

   • Shim the sector to run free with the spur and just clear the shell.

   • Hand-cycle to ensure the tappet cam sweeps smoothly with no lift-induced binding.

Check the triangle: Close the shell with only gears installed. Spin any gear — all three should coast freely with no “gritty” points, and the sound should be a soft, even whisper.

Setting AOE (Angle of Engagement) correctly

What it is: The angle at which the sector’s first tooth contacts the first full tooth of the piston rack as the piston begins moving. Ideal AOE aligns contact near 12 o’clock on the sector gear (close to the gear’s apex), so force travels straight back into the piston body and rails — not downwards, which shears teeth.

How to do it (with Aztech piston shims):

1. Assemble cylinder head, piston, and Aztech AOE shims (1–3 mm) behind the piston head to move the rack forward in small, controlled steps while keeping the head mass low.

2. With the gearbox open and the sector parked before first pickup, advance slowly until the first tooth meets the rack.

3. Adjust shim stack until engagement occurs near 12 o’clock, with full face contact on the rack tooth — not just the tip.

4. Verify no pre-engagement at high cycle rates: with the spring installed, hand-cycle 2–3 turns and observe that the piston fully returns before the sector’s next pickup.

5. Re-confirm tappet timing after AOE changes.

AOE done right prevents tooth chipping, reduces impact shock on the piston head and cylinder head, and keeps the rack straight under load.

(Using face shims behind the head is preferred over adding thick pads to the cylinder head — it preserves cylinder volume and keeps reciprocating mass low.) Azraels Armoury

Grease & fasteners (small, but crucial)

• Use a light, tacky synthetic on teeth. Over-greasing increases drag and throws lube.

• A dab of blue thread-locker on the pinion grub screw (M3 Torx on the Aztech) prevents slip; clean both threads and shaft first. Azraels Armoury

Brushless motor benefits you’ll actually feel

• Cooler, quieter power: higher efficiency means less heat dump into the grip and less electrical noise.

• Consistent torque across RPM: better for precocking and snappy semi-auto without overspin.

• Lower current for the same work: pairs beautifully with a well-shimmed, low-drag train so your pack and MOSFET live longer.

• The SOLINK LT 35 kRPM long-axis brushless is a strong match for quality 18:1 or 13:1 sets when shimming is on point. Azraels Armoury

Tuning notes for SHS gear ratios

• 18:1 (TM-standard speed): balanced, gentle on current, ideal for endurance and general builds. SHS hardened sets are durable and stable — great for reliability-first gearboxes.

• 13:1 (high-speed): faster cycle and crisp semi response; ensure motor torque is up to it and shimming is spot on to avoid whine and heat.

QC checklist before you button up

• Axial play on each gear ~0.05–0.10 mm; no shell rub.

• Even marker wipe on pinion↔bevel contact after brief, unloaded spins. Adjust motor height in ¼-turns. Azraels Armoury

• Sector ↔ rack: clean, centered pickup; no “skip” marks.

• Tappet cam rides smoothly; returns cleanly.

• Noise test (spring out): whisper-quiet free spin. With spring in: no metallic chirps.

• Thermal test: after short strings, motor temperature should be warm, not hot — otherwise re-check mesh and AOE.

Recommended parts (mentioned above)

• Aztech Innovations Perfect Pinion — SCM440, nitrided, M3 Torx grub, beveled hub aids motor-height setup. Azraels Armoury

• Aztech Xtreme Nylon Polymer Piston & CNC Head — supports 1–3 mm AOE shimming while keeping reciprocating mass low. Azraels Armoury

• SOLINK LT 11.1 V 35,000 RPM Long-Axis Brushless Motor — efficient brushless drive for quiet, cool power. Azraels Armoury

• SHS hardened steel gearsets (13:1 /16:1 / 18:1) — CNC steel, heat-treated; proven durability in V2/V3 gearboxes.

Final thoughts

Perfect shimming is a measurement exercise, not guesswork. If you take the time to center the mesh, control axial play, and set AOE with purpose-made shims, you’ll end up with a gearbox that runs quieter, cooler, and far longer — and you’ll actually hear (and feel) the difference on the field.

If you want, I can turn this into a printable step-by-step checklist or add photos/diagrams for each measurement point.
